Industry Insight: Why Must Rubber Tires Possess a “Permanent Identity Identifier”?
In the context of modern automotive supply chain and logistics management, rubber tires—as critical components directly impacting driving safety—make “identity traceability” absolutely essential. The practice of coding and marking tires is driven primarily by the following three core imperatives:
1. Full Lifecycle Traceability and Compliance: From raw material formulation and vulcanization production to factory quality inspection and final sales, every step of the tire manufacturing process requires precise record-keeping. DOT certification codes and unique serial numbers (barcodes/QR codes) for the production cycle are mandatory requirements in major markets (such as Europe and the US).
- Stringent Anti-counterfeiting and Anti-counterfeiting Management: Traditional inkjet printing or labels are easily worn, tampered with, or maliciously scratched off. Establishing irreversible, “permanent skin” markings is the core means of anti-counterfeiting and preventing dealer counterfeiting in the automotive aftermarket.
- After-sales Warranty and Defect Recall: In the event of a quality dispute or safety recall, clearly legible markings allow manufacturers to pinpoint the batch and source of the problem within seconds, mitigating substantial legal risks.
However, traditional vulcanized steel typeface replacement is cumbersome and inefficient; while ordinary inkjet printing has poor adhesion to rubber surfaces and is prone to peeling off. The rubber tire industry urgently needs a more flexible and durable marking technology.
Pain Points Solved: Innovative Solutions from the CYCJET M Series Portable Laser Machine
Addressing the pain points of production sites such as the large size, irregular surface, and difficulty in moving rubber tires, CYCJET has created the M-series handheld portable laser printer, which provides tire manufacturing and retreading companies with a highly efficient coding solution.
1. Breaking Space Limitations: Lightweight Design, Handheld Weight Only 1.25kg
Tires are heavy, bulky workpieces, resulting in high handling costs. The CYCJET M series employs extreme lightweight and ergonomic design, with the handheld nozzle weighing only 1.25kg (total machine weight 8.25kg). Operators can easily hold it with one hand, marking tire sidewalls at any angle directly in warehouses, next to production lines, or even on trucks.
2. Extended Battery Life: 12-16 Hours of Continuous Operation
For complex environments such as large tire factory warehouses and outdoor storage yards where power access is not always available, the M series supports a powerful battery power solution, providing continuous operation for 12-16 hours. Simultaneously, the equipment is compatible with 100-240V/50/60Hz standard voltage input, supporting “plug-in when there is power, use when there is no power,” ensuring uninterrupted high-intensity operations.
3. High-Precision Non-Destructive Marking: ≤0.3mm Depth Control
Rubber is a material with extremely high heat sensitivity. The M series, based on a high-performance fiber laser with a 1064nm wavelength, offers multiple output power options of 20W/30W/50W. Combined with a marking speed of up to 10000mm/s and ultra-high precision of 0.002, it can quickly etch on the tire surface. The marking depth is precisely controlled to ≤0.3mm (depending on marking time and power), ensuring that the markings will never fall off under friction, car washes, or harsh road conditions, while perfectly achieving non-destructive marking without damaging the tire’s internal cord layers and safety structure.

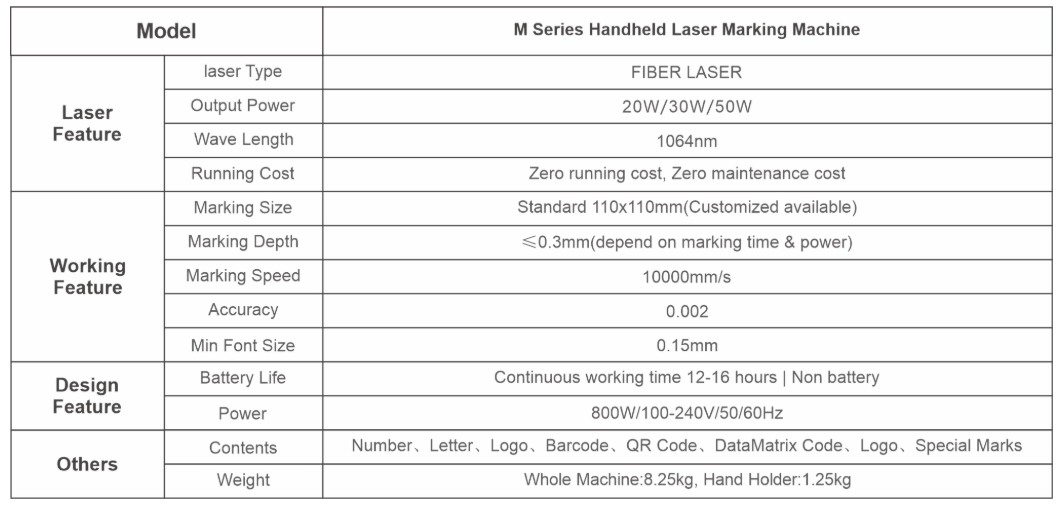

M-series core technical indicators (industrial parameter table)
To help global manufacturers and distributors better understand the equipment’s performance, the following are the core technical specifications of the CYCJET M series:
In summary:
In the era of Industry 4.0, markings are no longer just simple numbers; they are digital passports for products to access the global market. With over 20 years of experience in industrial inkjet printing and laser marking, CYCJET’s M-series handheld laser printers, boasting superior performance with “zero consumables, zero maintenance costs, and high portability,” are becoming standard equipment for the digital transformation of the rubber and tire industry.
If you are looking for a marking solution that can improve your product’s digital management level and reduce long-term operating costs, the CYCJET M-series will bring you a revolutionary experience.
About CYCJET:
CYCJET is a company specializing in industrial marking and coding technology, boasting 20 years of experience. The company is committed to providing customers with a full range of products, including small character inkjet printers, high speed digital printing systems, laser marking machines, portable inkjet printers, and automated inkjet printers. With stable performance, excellent technical support, and extensive experience serving top global brands, CYCJET’s products are widely used in food, beverage, building materials, automotive parts, logistics packaging, and other fields, with a service network covering many countries and regions worldwide.
